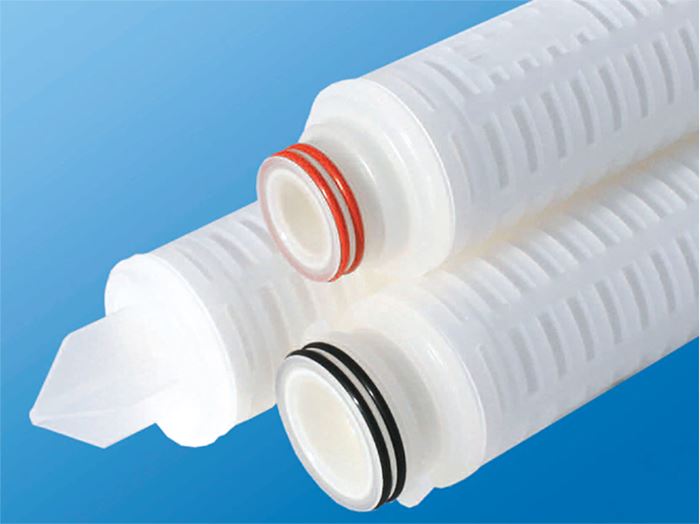

QCR ™ 0.8 30-P7S Filter Cartridge

Nominal 0.8µ rating CODE 7

Filter Features–Benefits:

• Constructed entirely of polypropylene. Compatible with most solutions
• 7.7 ft2 (0.72 m2) of effective filter area.High flow rates at low pressure drop and high dirt capacity
• Meets/exceeds NSF Standard 53 for cyst reduction*
• FDA Listed Materials

All polypropylene material used in manufacturing complies with the regulations of the Food and Drug Administration (FDA) Title 21 of the Code of Federal regulations 174.5, 177.1520 and 177.1630, as applicable for food and beverage contact.

Dimensions and Operating Parameters:

• Outside diameter: 2.7’’ (6.9 cm)
• Inside diameter: 1.0’’ (2.54 cm)
• Maximum operating temperature: 176°F (80°C)
• Maximum differential pressure:
  • 75 psid @ 70°F (5.2 bar @ 21°C)
  • 40 psid @ 176°F (2.8 bar @ 80°C)
  • 15 psid @ 190°F (1.03 bar @ 88°C)
• Recommended change-out: 35 psid (2.4 bar)
